PPG Semkit Mixing

The most popular packaging type for PPG aerospace sealants is the two component, premeasured Semkit cartridge system. There are a number of official methods approved for mixing PRC or Pro-Seal sealants packaged in Semkits as outlined below.

Semkit in a hand

Machine mixing and hand mixing are the only industry recognized methods for mixing sectionalized containers (Semkit) as referenced in SAE AIR4069 and Boeing BAC5000.

When mixing a PPG Aerospace sealant Semkit, always follow the directions as dictated on the product packaging. The recommended mixing instructions are tested and validated to ensure that the sealant performs as intended and meets all specification requirements.

The mixing of a Semkit by other means, such as with a drill adapter, may compromise the performance properties of the sealant and void the warranty.

Testing shows that mixing with a drill adapter has several definitive detrimental effects on the sealant: Uncontrolled mixing speed will excessively heat the sealant and greatly reduce the working time of the sealant, and will decrease the extrusion rate below specification-required values. The high torque and shear induced with a drill may also damage certain raw material ingredients in the uncured wet sealant, irreversibly degrading the anti-sag properties of the wet sealant, or the density of the cured sealant.

Low density sealants are especially affected by drill mixing. Any of these negative effects may cause the sealant to perform outside of specification requirements, and will therefore void the certification and/or warranty. Mixing with a drill adapter also presents significant safety concerns, as there have been documented cases of user injury when mixing a Semkit with a drill.

It is important to visually inspect that all accelerator has been fully injected into the Semkit during mixing, regardless the means of mixing, automatic or manual. The accelerator plays a vital role in the curing process of the material. Therefore, it is imperative that proper mixing, including mix ratio, is achieved.

Hand Mixing of Semkits

Mixing by hand is an approved method for mixing PRC and Pro-Seal sealants packaged in Semkits. For detailed written instructions, please contact our technical service team or watch the brief videos below on how to mix an injection-style Semkit or a barrier-style Semkit by hand.

Semkit video showing machinery
Hand mixing video

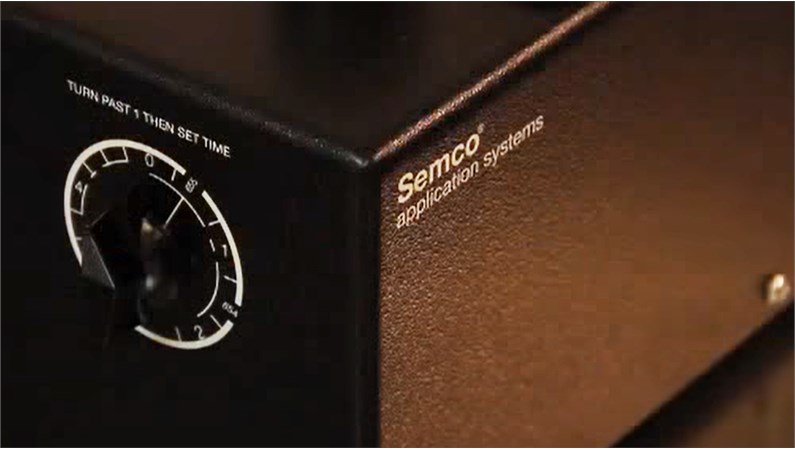

Semco Model 1088 Automated Semkit Package Mixer

The Semco Model 1088 Semkit Package mixer provides complete automatic mixing of filled Semkit Packages.

Use of the mixer will minimize operator set up of the machine for different kit configurations, reduce worker fatigue, and assures the user a more thorough and consistent mix, kit to kit.

Mixing semkit packages

Semco Model 285-A Portable Electric Semkit Package Mixer

The Semco Model 285-A Semkit package mixer provides semi-automatic mixing of filled Semkit packages. Use of the mixer reduces worker fatigue and assures a more consistent, uniform mix.

The drive spindle rotates the mixing rod while the operator strokes the cartridge vertically. This permits the rotating dasher to thoroughly mix the materials. The bell timer alerts the operator when the mix cycle is completed.

PPG mixing machine
Semco machine

PPG Mixing Machine Range
