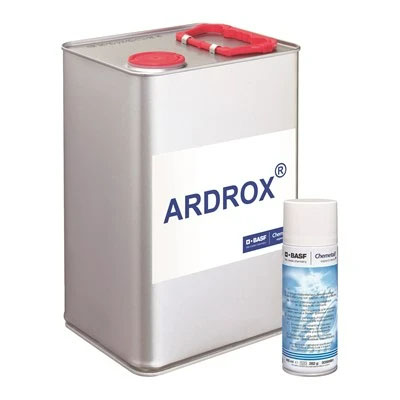

Ardrox 9VF2 Visible/Fluorescent Penetrant

Silmid P/N: VAR0001528
From £13.76 (excl VAT) £16.51 (Inc VAT)
Ardrox 9VF2 is a high sensitivity azo-dye-free red penetrant which can also be used with an ultraviolet light to give improved indication of the defects. This product is supplied in various sizes.

Product Information

Ardrox 9VF2 is a red dye penetrant in accordance with EN ISO 3452 Type II, which can be removed by water or solvents ° and a fluorescent penetrant in accordance with EN ISO 3452 Part 2 Type III. It corresponds to the requirements of ASTM and ASME. Ardrox 9VF2 is a high sensitivity, azo-dye free penetrant which does not contain any aromatic hydrocarbons and has a low sulfur and halogen content. It has good removability characteristics and offers the highest sensitivity level according to EN ISO 3452.

Ardrox 9VF2 can also be viewed with an ultraviolet light to give enhanced indication of the defects. Ardrox 9VF2 is used in non-destructive testing for forged parts, welds, castings etc. Ardrox 9VF2 is used together with the Ardrox range of cleaners and developers

Features:

  • In view of its red and fluorescent modes of operation the need for separate red and low sensitivity fluorescent penetrants is no longer required when ARDROX 9VF2 is used
  • During inspection of a component, if there is any doubt concerning an indication in the red mode, then the added sensitivity of the fluorescent mode should be used

Conformances:

  • ASME Boiler Vessel Code Section V, Article 6
  • EN ISO 3452 Part 2, 5 and 6, Type III, Level 2

Physical Chemical Properties:

  • Appearance Clear bright fluorescent red liquid
  • Density Approx. 0,92 @ 20°C / 68°F g/ml -
  • Flash point > 93°C / 201°F

Details:

  • Ardrox 9VF2 Visible/Fluorescent Penetrant
  • Available in various sizes
  • Product Video
