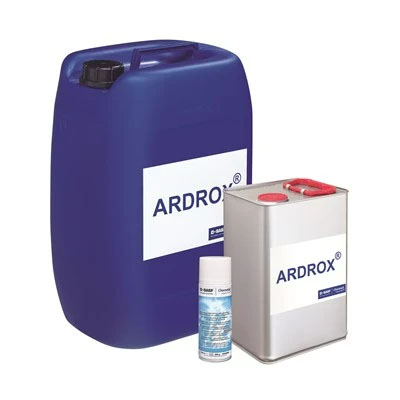

Ardrox AV8 Super Penetrating Water Displacing Corrosion Inhibiting Compound

Silmid P/N: VAR0000558
From £25.35 (excl VAT) £30.42 (Inc VAT)

Ardrox AV8 is applied as a coating to protect metals commonly used in airframe structures and in aerospace components from corrosion.

Data Sheets

Download the Ardrox AV8 technical data sheet (TDS) and the Ardrox AV8 safety data sheet (SDS) from Silmid today. Once you have logged in or signed up, select the product size you are interested in and the datasheet will be visible for download if one is available.

Product Properties

Brand
Ardrox
Manufacturer Part Number
50593724 | 50603014 | 50603015
Also Known As
Dinitrol AV8 Super Penetrating Water Displacing Corrosion Inhibiting Compound
Coverage
44 m2 per Litre at 8 Micrometres
Specific Film Weight
8 g/m2
CIC Penetration
Super Penetrating | Water Displacing
Protection Time (Hours)
12
Drying Time
60 minutes
Film Thickness
8 to 15 Micrometres
Flash Point (°C)
38

Specifications

NSN Reference
8030-12-332-5765 | 8030-12-346-7460
US Military
MIL-PRF-16173 (Conforms)
Airbus
AIMS 09-08-001 | AIMS 09-08-001 | IPS 09-08-001-01
Boeing
BMS 3-23
Airbus Helicopters CM
CM5003 | CM5003 | CM5003
ATR CML
05-027H
Miscellaneous Specs
Bombardier BAMS 565-006 | Embraer MEP 10-063 | Kaman CMS CT-501

Please Note: Specifications and approvals are subject to change at any time. Users should always consult their AMM or the OEM when selecting products to ensure items have the release needed. Only specifications listed on the order confirmation will be certified on the Silmid CofC.

Product Information

Ardrox AV8 can be used in all areas of the airframe on painted and unpainted surfaces. It combines excellent penetration properties with good corrosion inhibiting characteristics at a low film weight.

Ardrox AV8 can be applied by dipping, brushing or spraying. For maximum penetration capability and the most effective corrosion inhibiting performance, spray application is recommended.

The coating should be applied at 20 to 40 µm / 0,8 - 1,6 mils wet thickness. In areas exposed to severe corrosion conditions Ardrox AV8 can be overcoated with Ardrox AV30 or AV100D.

Movable parts should be masked before treatment. If Ardrox AV8 spray control or masking of movable components is not possible, then an alternative soft waxy film CIC, such as Ardrox AV25 should be used.
