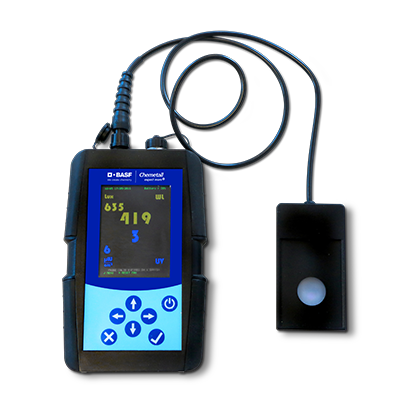

Chemetall UVe-LUX Single Sensor Light Meter

Silmid P/N: P0220542
No Stock - Standard lead time 24 business days

The UVe-LUX is a compact, lightweight, and robust meter specifically designed for the non-destructive testing environment. The meter is a dual white-light (WL) and ultraviolet (UV) meter designed to give simultaneous readings of both WL and UV. It can be used in general-purpose laboratories and for NDT in the aerospace, offshore, defence and automotive industries. Additionally, the visible light output of UV lamps; the UV output of visible lamps and the ambient visible light of inspection booths may be monitored.

Technical Information

  • Commodity Code 90275000
  • Country of Origin United Kingdom

Data Sheets

Download the UVe-LUX Single Sensor Light Meter technical data sheet (TDS) and the UVe-LUX Single Sensor Light Meter safety data sheet (SDS) from Silmid today. Once you have logged in or signed up, the datasheet will be visible for download if one is available.

Product Properties

Brand
Chemetall
Manufacturer Name
Chemetall GmbH
Manufacturer Part Number
45222672

Product Information

Features:

  • Single sensor head measures UV and white light at the same time
  • 320 x 240 pixel 2.8” TFT colour LCD display
  • Dimmable display to extend battery life
  • Auto-ranging on both WL and UV scales
  • Menu driven setup and multi-function buttons
  • ‘Auto Hold’ function to record maximum readings
  • Adjustable auto-power down to conserve battery life
  • Meets the requirements for non-destructive testing viewing conditions for penetrant and magnetic particle inspections (ISO 3059)
  • Measurement units - WL: lux or fc, UV: μW/cm² 0 m W/cm²
  • Measuring range - WL: 0.1 to 5000 lux, UVA: 0 to 10,000μW/cm²
  • Accuracy - WL: better than 5%, UV: better than 5%
  • 2 x AA Rechargeable batteries
  • Display of time and date
  • Save function for logging readings
