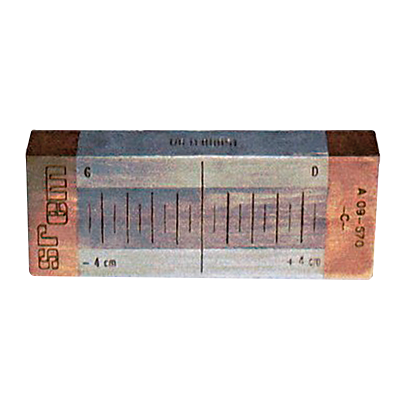

Chemetall Termoin C Test Piece

Silmid P/N: P0220555
No Stock - Standard lead time 24 business days

Reference Test Block C is made of two rectified low carbon steel pieces fitted together with an air gap (0.015-mm). On each side of these bars, there are two magnets which are assembled top to bottom so that each bar may have a North and a South pole to its ends.

Technical Information

  • Commodity Code 90249000
  • Country of Origin France

Data Sheets

Download the Chemetall Termoin C Test Piece technical data sheet (TDS) and the Chemetall Termoin C Test Piece safety data sheet (SDS) from Silmid today. Once you have logged in or signed up, the datasheet will be visible for download if one is available.

Product Properties

Brand
Chemetall
Manufacturer Name
Chemetall GmbH
Manufacturer Part Number
45222635

Product Information

The length of the indication spectrum, which can be read on the right side and the left side, indicates the quality of the magnetic ink which is used.

Reference Test Block C is intended to be used systematically:

  • To check the performance of crack detection of magnetic inks and powders as part of the Quality Control at the manufacturing stage (Section 7.1.1 of EN ISO 9934-2) and in use (Section 7.1.2 of EN ISO 9934-2)
  • To compare the efficiency of magnetic inks and powders against reference samples.
  • To compare the performance of magnetic powders and inks of various types from the same source or from 1 of 3 different sources
